Picking machine

2018-1-3 13:38:42



Pick up the fruit machine:

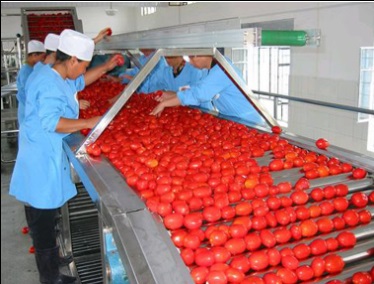

This equipment is used for hand-picking and removing sundries of tomatoes, strawberries, apples, mangoes and other fruits after washing.
The part in contact with food is made of 304 austenitic stainless steel of food grade, and the roller-type conveyance of anti-stuck fruit is adopted to ensure the forward conveyance of the material and rotate at the same time, so as to prevent the missed inspection and the dead Angle of sanitation to the greatest extent.
The distance between the rollers can be adjusted according to different fruits to prevent leakage and stuck fruit.
PLC automatic control, variable frequency speed regulation, smooth operation, noise is not greater than 80DB.
The detected objects can be directly transported to the designated place by the hydraulic flow tank under the floating washer, which is clean, sanitary and easy to manage.



Model

DP-JG5

DP-JG10

DP-JG15

DP-JG30

Capacity(t/hr)

5

10

15

30

Power(kw)

1.5

2.2

3

5.5

Size(L/W/H,mm)

3500×1080×1400

4500×1180×1400

5500×1280×1400

7000×1480×1400
